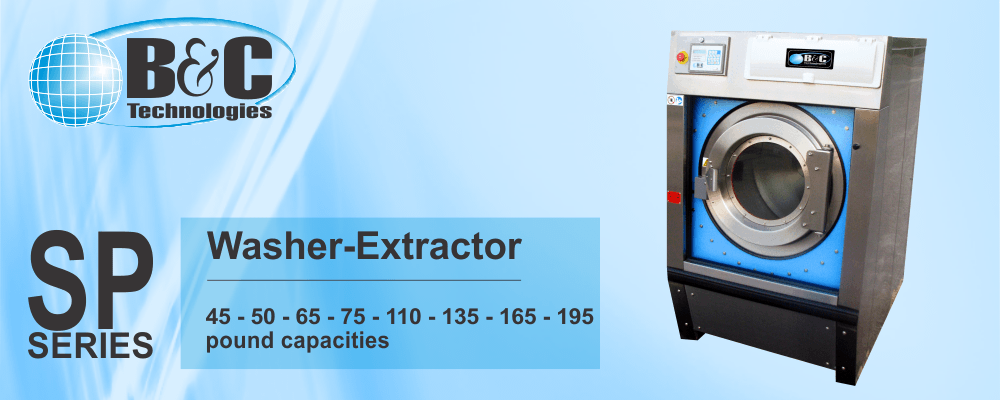

SP Series Commercial Washer

Our SP line of Softmount Professional washer-extractors is perfect for your on premise laundry. Freestanding operation and our excellent pricing means you'll save time and money in your laundry. Simple operator interface and robust design means infrequent maintenance. All 304 (18/8) stainless steel cabinet and wash area protects your investment. True 350G high speed extraction saves time and money in the drying process, reducing drying time, fuel cost, and linen wear. Available in capacities from 45 to 195 pounds.

Features at a glance

  • Standard 3 year warranty
  • 350G extract force which reduces energy consumption and increases savings
  • Advanced Microcomputer, PC programmable, programs transferred via bluetooth.
  • 1 Compartment supply dispenser for dry and liquid chemicals
  • 6 connections for automatic chemical injection
  • Chemical hold input
  • Stainless Steel cabinet. All parts in contact with the wash solution made of 304 (18/8) stainless steel.
  • Inverter drive - programmable variable speed
  • Single motor drive
  • Cool down
  • Programmable water levels
  • Programmable water temperature
  • Rear drain connection

Markets

  • Hotel, motel, and other commercial laundry applications
  • Carwash
  • Dairy Farms
  • Nursing Homes
  • Athletic clubs
  • Spa
  • Upper floor laundry applications
  • Anywhere a commercial washing machine is needed

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

SP-45

SP-45 Basic Specifications

SP-45 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity45 lbs20.5 kg
Cylinder Volume6.6 cu ft186.9 liters
Width36.42 in925 mm
Depth43.03 in1093 mm
Height57.75 in1467 mm
Weight1300 lbs590.9 kg
G Force350
Door Opening14.57 in370 mm
Door Height25.79 in655 mm

Layout and Full Details

SP-50

SP-50 Basic Specifications

SP-50 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity50 lbs22.7 kg
Cylinder Volume7.4 cu ft209.5 liters
Width36.42 in925 mm
Depth45.4 in1153 mm
Height57.75 in1467 mm
Weight1353 lbs615 kg
G Force350
Door Opening14.57 in370 mm
Door Height25.79 in655 mm

Layout and Full Details

SP-65

SP-65 Basic Specifications

SP-65 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity65 lbs29.5 kg
Cylinder Volume9.7 cu ft274.7 liters
Width39.49 in1003 mm
Depth48.46 in1231 mm
Height63.58 in1615 mm
Weight1452 lbs660 kg
G Force350
Door Opening17.7 in450 mm
Door Height29.13 in740 mm

Layout and Full Details

SP-75

SP-75 Basic Specifications

SP-75 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity75 lbs34.1 kg
Cylinder Volume11 cu ft311.5 liters
Width39.49 in1003 mm
Depth51.4 in1306 mm
Height63.58 in1615 mm
Weight1687 lbs766.8 kg
G Force350
Door Opening17.7 in450 mm
Door Height29.13 in740 mm

Layout and Full Details

SP-110

SP-110 Basic Specifications

SP-110 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity110 lbs50 kg
Cylinder Volume16.9 cu ft478.6 liters
Width47.4 in1204 mm
Depth54.92 in1395 mm
Height71.06 in1805 mm
Weight2350 lbs1068.2 kg
G Force350
Door Opening20 in508 mm
Door Height31.5 in800 mm

Layout and Full Details

SP-135

SP-135 Basic Specifications

SP-135 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity135 lbs61.4 kg
Cylinder Volume20.8 cu ft589 liters
Width51.18 in1300 mm
Depth62.99 in1600 mm
Height69.49 in1765 mm
Weight3960 lbs1800 kg
G Force350
Door Opening20 in508 mm
Door Height32.28 in820 mm

Layout and Full Details

SP-165

SP-165 Basic Specifications

SP-165 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity165 lbs75 kg
Cylinder Volume25 cu ft707.9 liters
Width60.55 in1538 mm
Depth68.11 in1730 mm
Height71.89 in1826 mm
Weight4477 lbs2035 kg
G Force350
Door Opening25 in635 mm
Door Height32.68 in830 mm

Layout and Full Details

SP-195

SP-195 Basic Specifications

SP-195 350G Softmount Washer/Extractor
UnitsUSMetric
Capacity195 lbs88.6 kg
Cylinder Volume29.6 cu ft838.2 liters
Width63.07 in1602 mm
Depth70.24 in1784 mm
Height74.57 in1894 mm
Weight4598 lbs2090 kg
G Force350
Door Opening25 in635 mm
Door Height34.25 in870 mm

Layout and Full Details

Get in touch!

Have any questions about the SP Series? We'd love to hear from you.

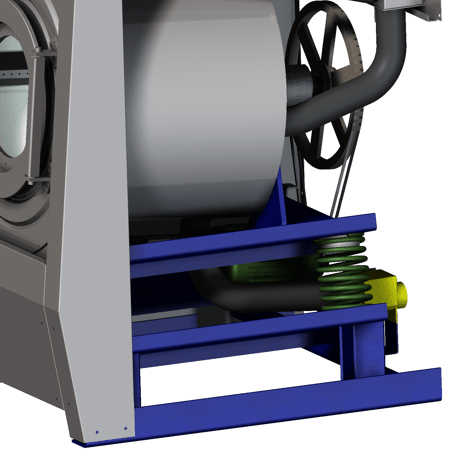

Superior Freestanding Construction
SP Series Commercial Washer Robust Construction

Soft Mount Construction

  • Freestanding design at hardmount pricing
  • Withstands the rigorous demands of continuous operation
  • Tuned suspension system with industrial shock absorbers
  • Easy installation with no special foundation requirements
  • Integrated lifting bars for easy installation, can be moved with a pallet jack

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

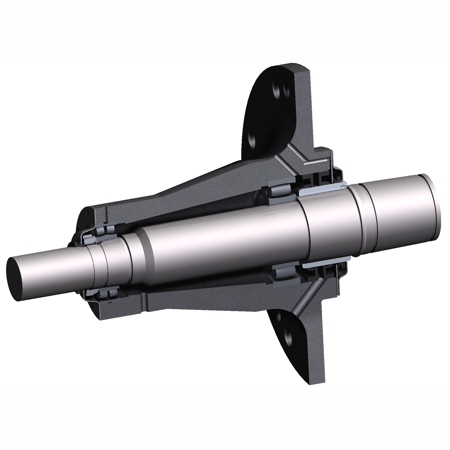

Long Lasting Bearing Design
SP Series Commercial Washer Bearing Housing

Solid Bearing Housing - High Quality Bearings and Seals

  • The ultimate in durable design
  • Cast iron construction
  • Revolutionary CARB bearings for long life
  • Double lip seals and a face seal for extra protection
  • Large leak off area to further protect the bearings from the wash solution

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Standard Inverter Drive
SP Series Commercial Washer Inverter Drive

Robust Energy Efficient Inverter Drive

  • Incredibly flexible operation
  • Excellent protection for the motor
  • Latest technology for precise speed control
  • Single motor drive without clutches and complication
  • 350G high speed extract

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Advanced Microprocessor Control
SP Series Commercial Washer Advanced Control

The FM7

  • Easy to use
  • 30 wash programs
  • Trouble-free
  • 8 chemical signals
  • Chemcical hold input
  • Programmable water levels, speeds and more
  • Incredibly flexible - handles demanding operations
  • Wetcleaning functionality built in - no special options required

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

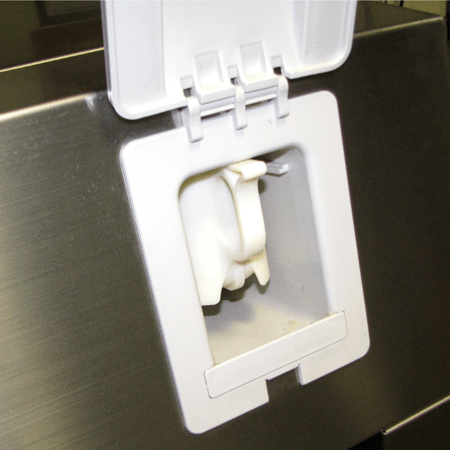

Standard 1 Cup Supply Dispenser
SP Series Commercial Washer 1 Cup Supply Dispenser

Supply Dispenser

  • Automatic flushing according to programming
  • 1 cup standard, 5 cup dispenser optional
  • Convenient height for easy access
  • Impervious to standard laundry chemicals
  • 6 liquid connection points on the rear of the machine

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

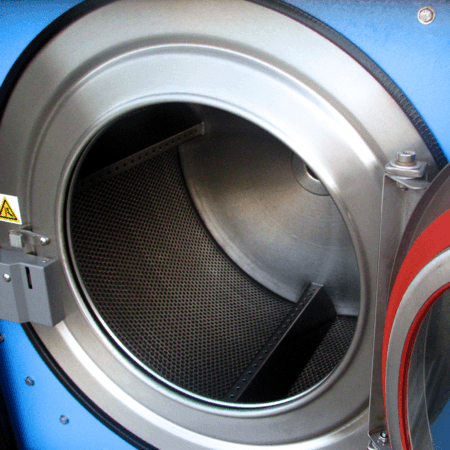

Large Door Opening
SP Series Commercial Washer Large Loading Door

Large Door Opening and Safe Door Interlock

  • Opens 180 degrees for easy loading/unloading
  • Door and hinge made of 304 stainless steel
  • Silicon door gasket for extra tight seal and long life
  • Safe, simple, reliable door lock system

Page 1

Click the × in the upper right corner or anywhere outside this box to close.

×

SP Series Revealed

Loading the player...

You can really see the heavy duty construction that goes into each B&C SP Series machine. It's a durable design from an engineering driven company.

Click the × in the upper right corner or anywhere outside this box to close.

×

Canalta Hotel Group

Loading the player...

Click the × in the upper right corner or anywhere outside this box to close.

×

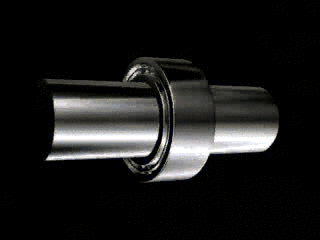

Superior CARB Bearings

The CARB toroidal roller bearing is a revolutionary bearing type that withstands misalignment and displacement. This bearing, used in the SP Series, HP Series, and SP Series (85 pounds and larger), is the ultimate solution to extended bearing life in a washer extractor.

The SKF CARB bearing accommodates misalignment and axial displacement within the bearing, without damaging the bearing and virtually without friction. The results are lower operating temperatures and reduced vibration levels, and improvements in reliability, bearing and lubricant life, and energy consumption.

Back...

Click the × in the upper right corner or anywhere outside this box to close.

×

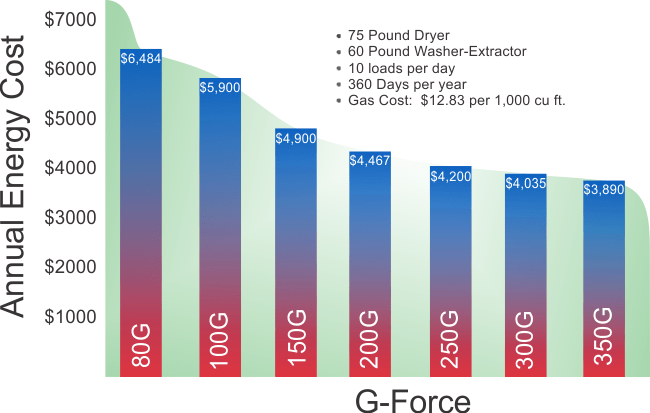

High Speeds Save Money

B&C Commercial and Industrial Washers Save Money

Lower speed washers cost you money over the life of the equipment - the slower the extract speed, the more water left in the goods. That excess moisture then needs to be removed in the dryer, taking more time and energy and ultimately costing a tremendous amount. All B&C washers feature at least 200G extracts: High speeds really do save money!
