Industrial Washing Machine | SB Series |B&C Technologies

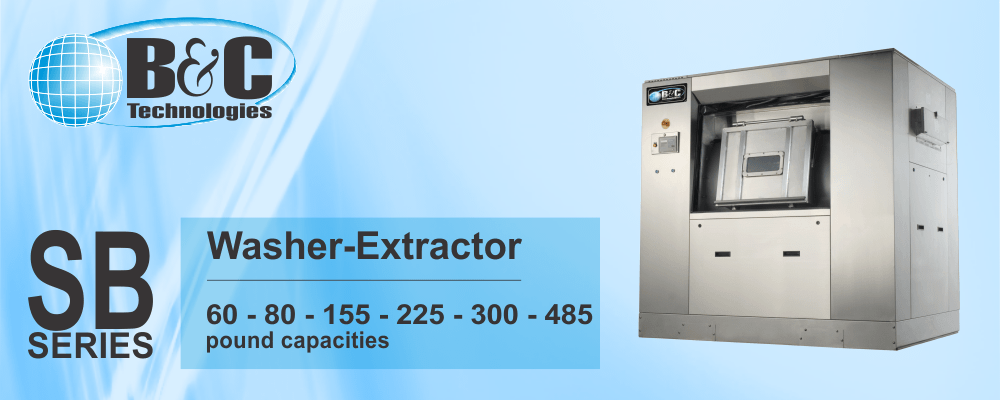

SB Series Barrier Washer

Our SB line of Softmount Barrier / Pass Through washer-extractors is perfect for your hospital laundry. Freestanding operation and our excellent pricing means you'll save time and money in your laundry. Simple operator interface and robust design means infrequent maintenance. All 304 (18/8) stainless steel cabinet and wash area protects your investment. Available in 60, 80, 155, 225, 300 and 485 pound capacities.

Features at a glance

  • 350G extract force which reduces energy consumption and increases savings
  • Pass Through design separates soiled and clean goods
  • Advanced Microcomputer, PC programmable, programs transferred via bluetooth
  • 5 Compartment supply dispenser for dry and liquid chemicals
  • 5 connections for automatic chemical injection
  • Chemcical hold input
  • Stainless Steel cabinet. All parts in contact with the wash solution made of 304 (18/8) stainless steel.
  • Inverter drive - programmable variable speed
  • Single motor drive
  • Robust spring suspension (SB-60 and SB-80)
  • Standard air bag suspension (SB-155 through SB-480)
  • Cool down
  • Programmable water levels
  • Programmable water temperature
  • Down drain connection

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

SB-60

SB-60 Basic Specifications

SB-60 350G Softmount Barrier Washer/Extractor
UnitsUSMetric
Capacity60 lbs27.3 kg
Cylinder Volume9.5 cu ft269 liters
Width51.26 in1302 mm
Depth31.1 in790 mm
Height66.18 in1681 mm
Weight2750 lbs1250 kg
G Force350
Door Opening11.81 in300 mm
Door Height31 in787 mm

Layout and Full Details

SB-80

SB-80 Basic Specifications

SB-80 350G Softmount Barrier Washer/Extractor
UnitsUSMetric
Capacity80 lbs36.4 kg
Cylinder Volume13.1 cu ft371 liters
Width58.75 in1492 mm
Depth50.35 in1279 mm
Height66.18 in1681 mm
Weight3432 lbs1560 kg
G Force350
Door Opening11.81 in300 mm
Door Height31 in787 mm

Layout and Full Details

SB-155

SB-155 Basic Specifications

SB-155 350G Softmount Barrier Washer/Extractor
UnitsUSMetric
Capacity155 lbs70.5 kg
Cylinder Volume25.04 cu ft709.1 liters
Width63.58 in1615 mm
Depth62.83 in1596 mm
Height83.62 in2124 mm
Weight5447 lbs2475.9 kg
G Force350
Door Opening15.75 in400 mm
Door Height41.97 in1066 mm

Layout and Full Details

SB-225

SB-225 Basic Specifications

SB-225 350G Softmount Barrier Washer/Extractor
UnitsUSMetric
Capacity225 lbs102.3 kg
Cylinder Volume36.45 cu ft1032.1 liters
Width77.68 in1973 mm
Depth62.83 in1596 mm
Height83.62 in2124 mm
Weight6147 lbs2794.1 kg
G Force350
Door Opening15.75 in400 mm
Door Height41.97 in1066 mm

Layout and Full Details

SB-300

SB-300 Basic Specifications

SB-300 350G Softmount Barrier Washer/Extractor
UnitsUSMetric
Capacity300 lbs136.4 kg
Cylinder Volume48.03 cu ft1360.1 liters
Width91.54 in2325 mm
Depth69.49 in1765 mm
Height83.46 in2120 mm
Weight7986 lbs3630 kg
G Force350
Door Opening17.72 in450 mm
Door Height44.37 in1127 mm

Layout and Full Details

SB-485

SB-485 Basic Specifications

SB-485 350G Softmount Barrier Washer/Extractor
UnitsUSMetric
Capacity485 lbs220.5 kg
Cylinder Volume77.69 cu ft2199.9 liters
Width101.77 in2585 mm
Depth84.84 in2155 mm
Height103.35 in2625 mm
Weight9988 lbs4540 kg
G Force350
Door Opening17.72 in450 mm
Door Height54.2 in1377 mm

Layout and Full Details

Get in touch!

Have any questions about the SB Series? We'd love to hear from you.

Superior Freestanding Construction
SB Series Industrial Washer Robust Construction

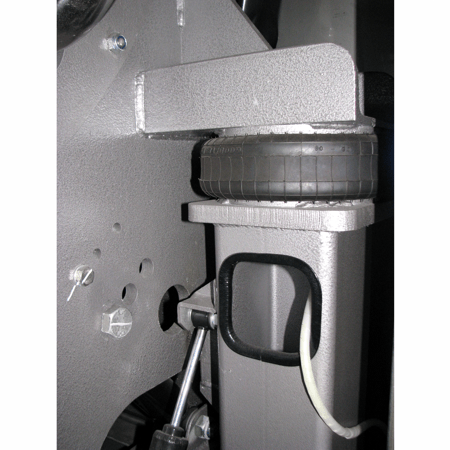

Soft Mount Construction

  • Withstands the rigorous demands of continuous operation
  • Tuned suspension system with heavy duty springs and industrial shock absorbers (SB-60, SB-80)
  • Air cushion suspension system standard on SB-155 through the SB-485
  • Easy installation with no special foundation requirements

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Design Features

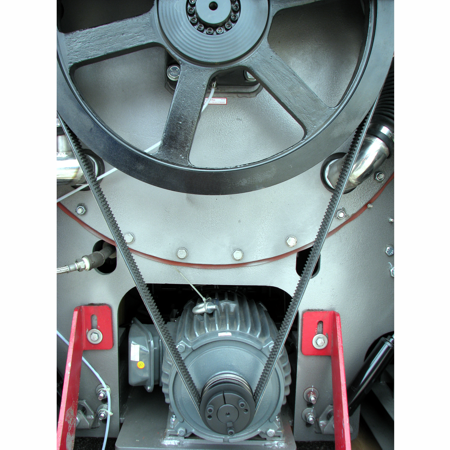

SB Series Industrial Washer Powerful Bearings

The Barrier Washer Design

  • Designed to be built into the wall separating the clean and soiled sides of the laundry
  • SB-60 and SB-80 are open pocket
  • SB-155, SB-225, and SB-300 are 3 pocket
  • SB-485 is 6 pocket (3+3)
  • Heavy duty bearings and housings for longevity

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Standard Inverter Drive
SB Series Industrial Washer Inverter Drive

Robust Energy Efficient Inverter Drive

  • Incredibly flexible operation
  • Excellent protection for the motor
  • Latest technology for precise speed control
  • Single motor drive without clutches and complication
  • 320G high speed extract

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Advanced Microprocessor Control
SB Series Industrial Washer Advanced Control

The FM7

  • Easy to use
  • 30 wash programs
  • Trouble-free
  • 8 chemical signals
  • Programmable water levels, speeds and more
  • Incredibly flexible - handles demanding operations
  • Wetcleaning functionality built in - no special options required

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

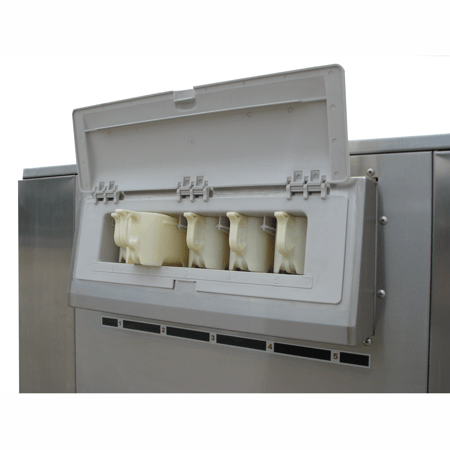

Standard 5 Cup Supply Dispenser
SB Series Industrial Washer Supply Dispenser

Supply Dispenser

  • Automatic flushing according to programming
  • 5 cup dispenser standard
  • Convenient height for easy access
  • 8 chemical signals standard

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

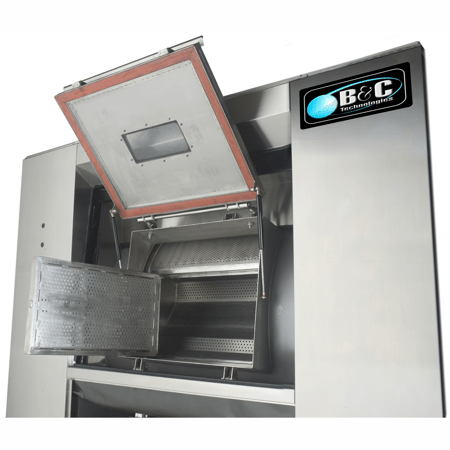

Large Door Opening
SB Series Industrial Washer Large Door

Large Door Opening and Safe Door Interlock

  • Stainless steel construction
  • Silicon door gasket
  • Locking system engineered for reliability and ease of use
  • Only one door may be opened at a time, preventing cross contamination

Page 1

Click the × in the upper right corner or anywhere outside this box to close.

×

High Speeds Save Money

B&C Commercial and Industrial Washers Save Money

Lower speed washers cost you money over the life of the equipment - the slower the extract speed, the more water left in the goods. That excess moisture then needs to be removed in the dryer, taking more time and energy and ultimately costing a tremendous amount. All B&C washers feature at least 200G extracts: High speeds really do save money!
