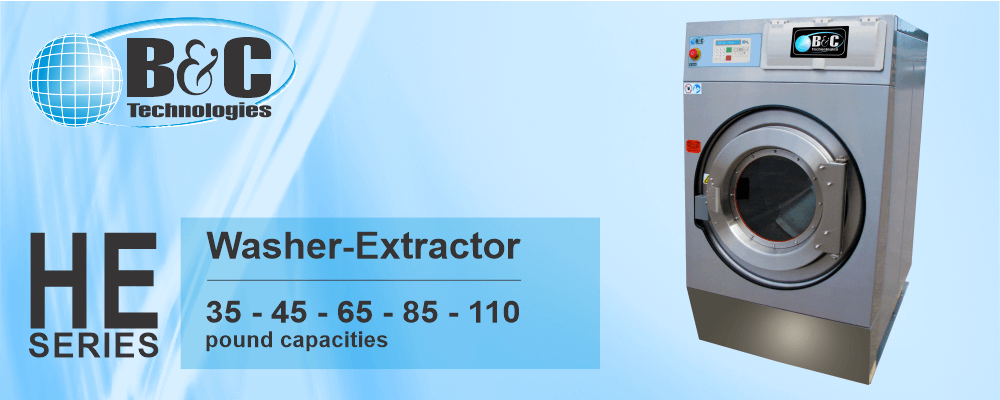

HE Series Commercial Washer

Our HE line of affordable Hardmount commercial washers is perfect for your on premise or commercial laundry. Fixed mount operation and our excellent pricing means you'll save time and money. Simple operator interface and robust design means infrequent maintenance. All 304 (18/8) stainless steel wash area protects your investment. Available in capacities from 35 to 110 pounds.

Features at a glance

  • Standard 3 year warranty
  • Advanced Microcomputer, PC programmable, programs transferred via bluetooth.
  • 200G extract force (100G for Firehouse Duty models)
  • 4 compartment supply dispenser for dry and liquid chemicals
  • 4 connections for automatic chemical injection
  • Chemical hold input
  • Stainless front and sides
  • All parts in contact with the wash solution made of 304 (18/8) stainless steel.
  • Inverter drive
  • Single motor drive
  • Robust computer designed frame
  • Rear drain connection

Markets

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

HE-35

HE-35 Basic Specifications

HE-35 200G Hardmount Washer/Extractor
UnitsUSMetric
Capacity35 lbs15.9 kg
Cylinder Volume4.52 cu ft128 liters
Width28.5 in724 mm
Depth38 in965 mm
Height45 in1143 mm
Weight680 lbs309.1 kg
G Force200
Door Opening15.7 in399 mm
Door Height14 in356 mm

Layout and Full Details

HE-45

HE-45 Basic Specifications

HE-45 200G Hardmount Washer/Extractor
UnitsUSMetric
Capacity45 lbs20.5 kg
Cylinder Volume6.8 cu ft192.6 liters
Width30.9 in785 mm
Depth44.1 in1120 mm
Height51.8 in1316 mm
Weight1040 lbs472.7 kg
G Force200
Door Opening15.7 in399 mm
Door Height18.7 in475 mm

Layout and Full Details

HE-65

HE-65 Basic Specifications

HE-65 200G Hardmount Washer/Extractor
UnitsUSMetric
Capacity65 lbs29.5 kg
Cylinder Volume9.7 cu ft274.7 liters
Width34.6 in879 mm
Depth47 in1194 mm
Height61.2 in1554 mm
Weight1240 lbs563.6 kg
G Force200
Door Opening17.7 in450 mm
Door Height22.4 in569 mm

Layout and Full Details

HE-85

HE-85 Basic Specifications

HE-85 200G Hardmount Washer/Extractor
UnitsUSMetric
Capacity85 lbs38.6 kg
Cylinder Volume13.6 cu ft385.1 liters
Width41.3 in1049 mm
Depth51.0 in1295 mm
Height67.2 in1707 mm
Weight1810 lbs822.7 kg
G Force200
Door Opening20.5 in521 mm
Door Height24.25 in616 mm

Layout and Full Details

HE-110

HE-110 Basic Specifications

HE-110 200G Hardmount Washer/Extractor
UnitsUSMetric
Capacity110 lbs50 kg
Cylinder Volume17 cu ft481.4 liters
Width41.3 in1049 mm
Depth54.0 in1372 mm
Height67.2 in1707 mm
Weight2108 lbs958.2 kg
G Force200
Door Opening20.5 in521 mm
Door Height24.25 in616 mm

Layout and Full Details

Get in touch!

Have any questions about the HE Series? We'd love to hear from you.

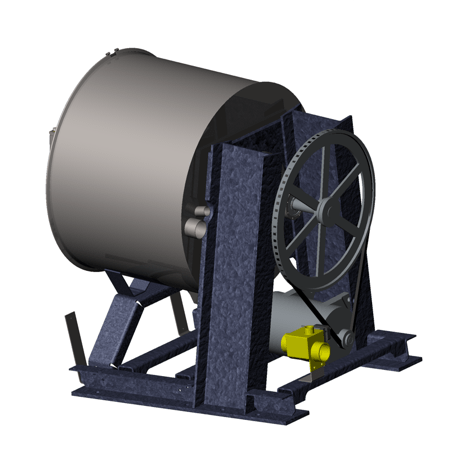

Sturdy Hardmount Design
HE Series Commercial Washer Robust Construction

Solid Mount Construction

  • Powerfully engineered and tested solid frame
  • Withstands the rigorous demands of continuous operation
  • Advanced anti-corrosion coating
  • Easy access boltdown
  • Integrated lifting bars for easy installation, can be moved with a pallet jack

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

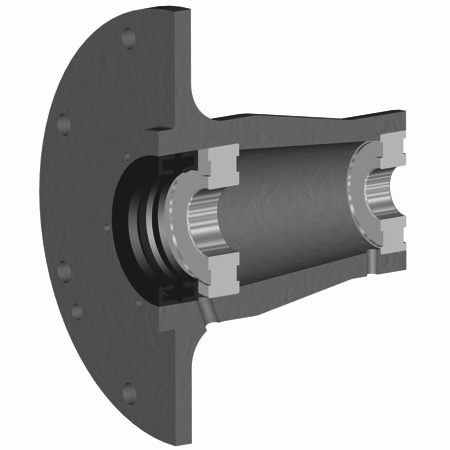

Long Lasting Bearing Design
HE Series Commercial Washer Bearing Housing

Solid Bearing Housing - High Quality Bearings and Seals

  • Cast iron construction
  • Oversized permanently lubricated bearings
  • Double lip seals and a face seal for extra protection
  • Large leak off area to further protect the bearings from the wash solution

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

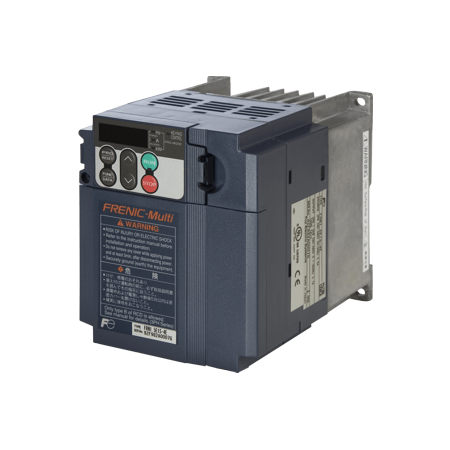

Standard Inverter Drive
HE Series Commercial Washer Inverter Drive

Robust Energy Efficient Inverter Drive

  • Incredibly flexible operation
  • Excellent protection for the motor
  • Latest technology for precise speed control
  • Single motor drive without clutches and complication
  • 200G high speed extract

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

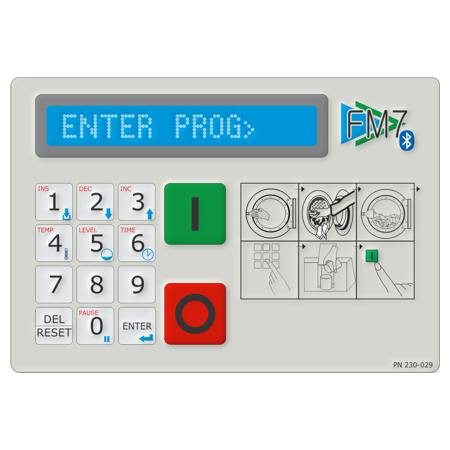

Advanced Microprocessor Control
HE Series Commercial Washer Advanced Control

The FM7

  • Easy to use
  • 30 wash programs
  • Trouble-free
  • 8 chemical signals
  • Chemcical hold input
  • Programmable water levels, speeds and more
  • Incredibly flexible - handles demanding operations
  • Wetcleaning functionality built in - no special options required

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Standard 4 Cup Supply Dispenser
HE Series Commercial Washer 4 Cup Supply Dispenser

Supply Dispenser

  • Automatic flushing according to programming
  • Front mounted, 4 compartments standard
  • Convenient height for easy access
  • Impervious to standard laundry chemicals
  • 4 liquid connection points on the rear of the machine

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

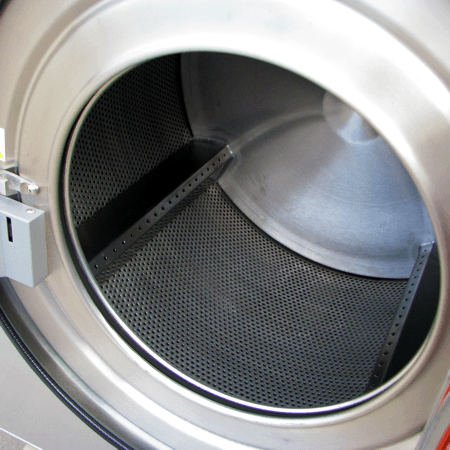

Large Door Opening
HE Series Commercial Washer Large Loading Door

Large Door Opening and Safe Door Interlock

  • Opens 180 degrees for easy loading/unloading
  • Door and hinge made of 304 stainless steel
  • Silicon door gasket for extra tight seal and long life
  • Safe, simple, reliable door lock system
