HP Series Commercial Washer

Our HP line of Hardmount Professional washer-extractors is perfect for your on premise laundry. Fixed mount operation and our excellent pricing means you'll save time and money in your laundry. Simple operator interface and robust design means infrequent maintenance. All 304 (18/8) stainless steel cabinet and wash area protects your investment. Available in 65 and 125 pound capacities.

Features at a glance

  • Standard 3 year warranty
  • Advanced Microcomputer, PC programmable, programs transferred via bluetooth.
  • 1 Compartment supply dispenser for dry and liquid chemicals
  • 6 connections for automatic chemical injection
  • Chemcical hold input
  • Stainless Steel cabinet. All parts in contact with the wash solution made of 304 (18/8) stainless steel.
  • Inverter drive - programmable variable speed
  • Single motor drive
  • Cool down
  • Programmable water levels
  • Rear drain connection

HP-65

HP-65 Basic Specifications

HP-65 300G Hardmount Washer/Extractor
UnitsUSMetric
Capacity65 lbs29.5 kg
Cylinder Volume9.7 cu ft274.7 liters
Width34.6 in879 mm
Depth47 in1194 mm
Height65 in1651 mm
Weight1552 lbs705.5 kg
G Force300
Door Opening17.7 in450 mm
Door Height25 in635 mm

Layout and Full Details

HP-125

HP-125 Basic Specifications

HP-125 200G Hardmount Washer/Extractor
UnitsUSMetric
Capacity125 lbs56.8 kg
Cylinder Volume19 cu ft538 liters
Width50.98 in1295 mm
Depth61.2 in1554 mm
Height65.7 in1669 mm
Weight3310 lbs1504.5 kg
G Force200
Door Opening20 in508 mm
Door Height27.5 in699 mm

Layout and Full Details

Get in touch!

Have any questions about the HP Series? We'd love to hear from you.

Sturdy Hardmount Design

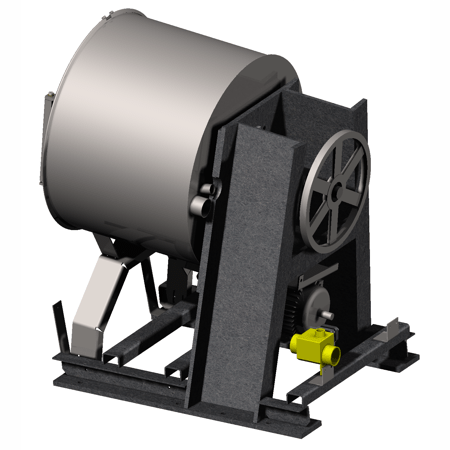

HP Series Commercial Washer Robust Construction

Solid Mount Construction

  • Powerfully engineered and tested solid frame
  • Withstands the rigorous demands of continuous operation
  • Advanced anti-corrosion coating
  • Easy access boltdown
  • Integrated lifting bars for easy installation, can be moved with a pallet jack

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

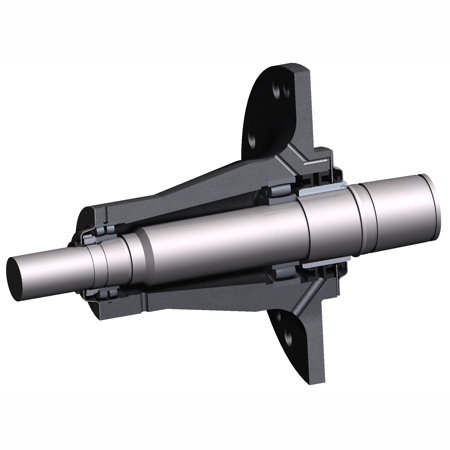

Long Lasting Bearing Design
HP Series Commercial Washer Bearing Housing

Solid Bearing Housing - High Quality Bearings and Seals

  • The ultimate in durable design
  • Cast iron construction
  • Revolutionary CARB bearings for long life
  • Double lip seals and a face seal for extra protection
  • Large leak off area to further protect the bearings from the wash solution

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Standard Inverter Drive
HP Series Commercial Washer Inverter Drive

Robust Energy Efficient Inverter Drive

  • Incredibly flexible operation
  • Excellent protection for the motor
  • Latest technology for precise speed control
  • Single motor drive without clutches and complication
  • HP-60 features 300G high speed extract
  • HP-125 features 200G high speed extract

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Advanced Microprocessor Control
HP Series Commercial Washer Advanced Control

The FM7

  • Easy to use
  • 30 wash programs
  • Trouble-free
  • 8 chemical signals
  • Chemical hold input
  • Programmable water levels, speeds and more
  • Incredibly flexible - handles demanding operations

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

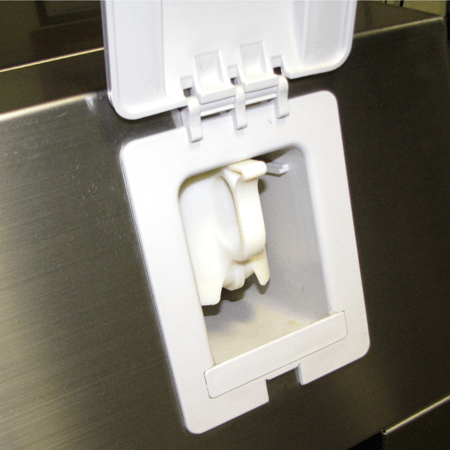

Standard 1 Cup Supply Dispenser
HP Series Commercial Washer 1 Cup Supply Dispenser

Supply Dispenser

  • Automatic flushing according to programming
  • 1 cup standard, 5 cup dispenser optional on HP-65
  • 5 cup standard on HP-125
  • Convenient height for easy access
  • Impervious to standard laundry chemicals
  • 6 liquid connection points on the rear of the machine

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

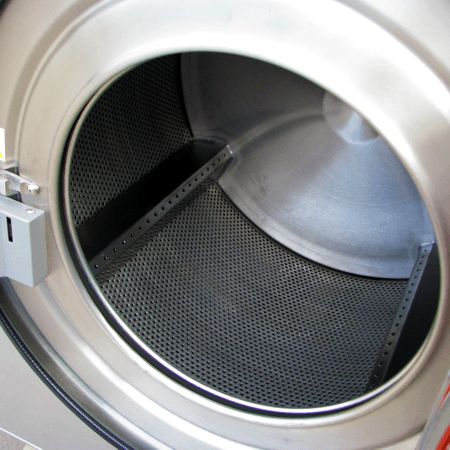

Large Door Opening
HP Series Commercial Washer Large Loading Door

Large Door Opening and Safe Door Interlock

  • Opens 180 degrees for easy loading/unloading
  • Door and hinge made of 304 stainless steel
  • Silicon door gasket for extra tight seal and long life
  • Safe, simple, reliable door lock system

Page 1

Click the × in the upper right corner or anywhere outside this box to close.

×

Superior CARB Bearings

The CARB toroidal roller bearing is a revolutionary bearing type that withstands misalignment and displacement. This bearing, used in the SP Series, HP Series, and HE Series (85 pounds and larger), is the ultimate solution to extended bearing life in a washer extractor.

The SKF CARB bearing accommodates misalignment and axial displacement within the bearing, without damaging the bearing and virtually without friction. The results are lower operating temperatures and reduced vibration levels, and improvements in reliability, bearing and lubricant life, and energy consumption.
