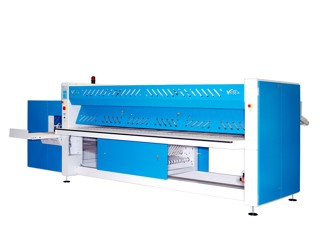

VF

Combination folder / crossfolder

The VF in combination with either the drop stacker or flip staker is a solution for folding and stacking all kind of flatwork with a high production and high folding quality.

In single-lane, sheets can be fully automatically folded up to three lateral folds combined with three cross folds. Small pieces can be folded up to two lateral folds up to four lanes. The lateral folds are accomplished by air blasts between rollers. The first cross fold is made by knife between two driven rollers, the second by knive combined with belt reverse and the third cross fold by knife.

The cross fold section is build according to a compact modular system so that the stacker can be placed either on the right or to the left side and can be reversed on site.

The VF is a completely freestanding machine - very compact, floor-saving and easy to ship and transport.

The folder has a PLC-system control with a control panel to program up to 100 programs, to test inputs and outputs, to control overlaps, stacking height, fault tracing, production counters, all in single- and multi-lane.

VF Brochure PDF, 870k Features and specifications for the VF.
