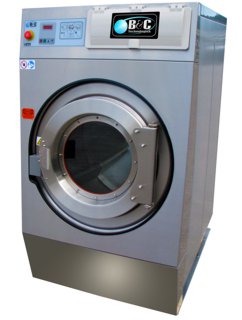

HE Series
Our HE line of Economy washer-extractors is perfect for your on premise laundry. Fixed mount operation and our excellent pricing means you'll save time and money in your laundry. Simple operator interface and robust design means infrequent maintenance. All 304 (18/8) stainless steel wash area protects your investment. Available in capacities from 30 to 100 pounds.
Features
Simple and easy to program computer
200G Extract force
4 Compartment supply dispenser for dry and liquid chemicals
4 connections for automatic chemical injection
Stainless Steel cabinet. All parts in contact with the wash solution made of 304 (18/8) stainless steel.
Inverter drive
Single motor drive
Robust computer designed frame
Rear drain connection

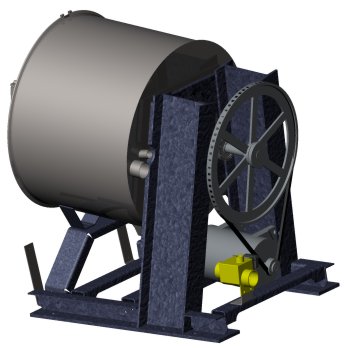

Solid Mount Construction
Amazing strength and fewer parts give the HE series extra long life, without needless breakdowns. The frame is engineered, computer analyzed, and tested for a lifetime of rigorous operation. It has a protective powder coating to reduce possible corrosion and prolong the life.

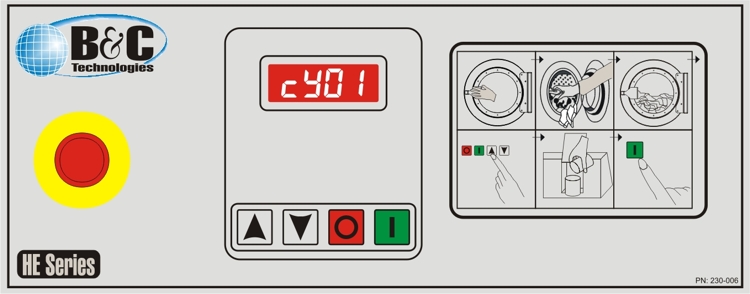

The B-Computer
The reliable B-computer provides the capacity to store and execute 30 wash programs, and is simple to operate and program. Four chemicals signals are provided for control of external liquid supplies. It controls water inlets, drain, wash speeds, temperature, water levels and all other functions to achieve optimum wash results at the lowest possible cost.

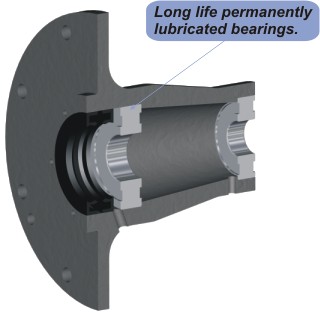

Bearing Housing
Rugged cast iron construction is used in our durable bearing housing. The shaft is
constructed of high strength steel. HE-30 and HE-40 utilize permanently lubricated ball
bearings, while the HE-60 and larger use the revolutionary SKF CARB torroidial bearing,
which provides for unbeatable longevity. Double lip seals and a face seal protect the
bearings, while a large leak off area ensures the laundry solution never comes into contact
with the bearings.
HE Series Brochure
PDF, 823k
Features and specifications for the Hardmount Economy Washers.
